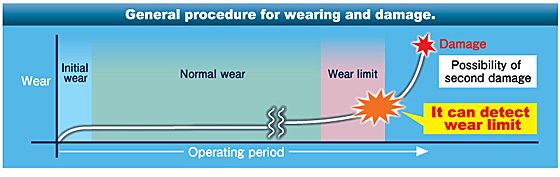

The TF-Detector is an electrically operated device that measures the iron (ferrous) powder density of the lubricator oil and detects magnetic micro particles with a high sensitivity of less than 20ppm and a resolution higher than 5ppm. Also detects accurately the condition of parts and equipment subject to tear and wear (such as bearings, gears, etc.) Disorder and abrasion of these parts can be avoided if used as an accident arrester, as an energy saving device to reduce lubrication and as a quality control machinery to measure ferrous powder density in various materials. The device cannot measure ionized and/or oxidized iron, it measures magnetism.  Practical samples: a) Monitor the condition of a two stoke low speed engine b) Monitoring the condition of gearboxes in wind power plants or diverse machinery c) monitoring the condition of bearings in diverse machinery d) monitoring the condition of gearboxes in railway vehicles ～Types and Models～ ●On-line types 1) Flange type: suitable for installation on drain and small amounts of lubricating oil   2) Passage type: suitable for installation on lubricating oil return line and average amounts of lubricating oil   The on-line TF-Detector fits onto the drainpipe and outputs an electric signal according to the density of the particles. The combination of a TF-Detector and the recommended piping arrangement realize precise monitoring of piston friction even with a small amount of drain oil. Notes: The amount of suspended particles in the drain oil has a strong relationship to the condition of the piston in a reciprocating engine and therefore the operating condition can be monitored by assessing the amount of suspended particles in the drain oil. This detector enables on line continuous high resolution measurement of the concentration of abrasive particles in drain oil for accurate monitoring of piston friction. The TF-Detector has a self-compensating function, so it is not affected by accumulation of sludge in the drain oil or the surrounding environment. Specifications: Subject to change without notice Range: 0ppm – 500ppm and 0ppm - 2000ppm (other ranges also available) Pressure: 0.3 MPa (flange type) and 0.5MPa (passage type) Temperature: Max. 70 deg. C Electric source: AC 100-220V (50/60Hz) Resolution: +-5ppm Size: L=185mm, W= 80mm, H=173mm (flange type) Size: L=178mm, W=106mm, H=213mm (passage type) ●Portable type  The portable TF-Detector features an easy operation with high sensitivity and resolution. Measurement and accuracy are not disturbed by the presence of sludge in the samples. To measure proceed as: 1) Sample a small amount of oil in a glass tube (provided) 2) Place the glass tube into the measuring hole of the TF-Detector 3) The TF-Detector will instantly analyze and indicate the magnetic particle density in ppm. Notes: The portable TF-Detector can save measurement data into SD cards. Saved data can be stored, monitored and checked in computers by SD cards. Specifications: Subject to change without notice Range: 0ppm – 500ppm and 0ppm - 2000ppm (other ranges also available) Temperature: 0 – 60 deg. C Consumption: 50W Electric source: AC 100V (50/60Hz) Resolution: +-2ppm Size: L=210mm, W=150mm, H=150mm, Weight= 3000g |
